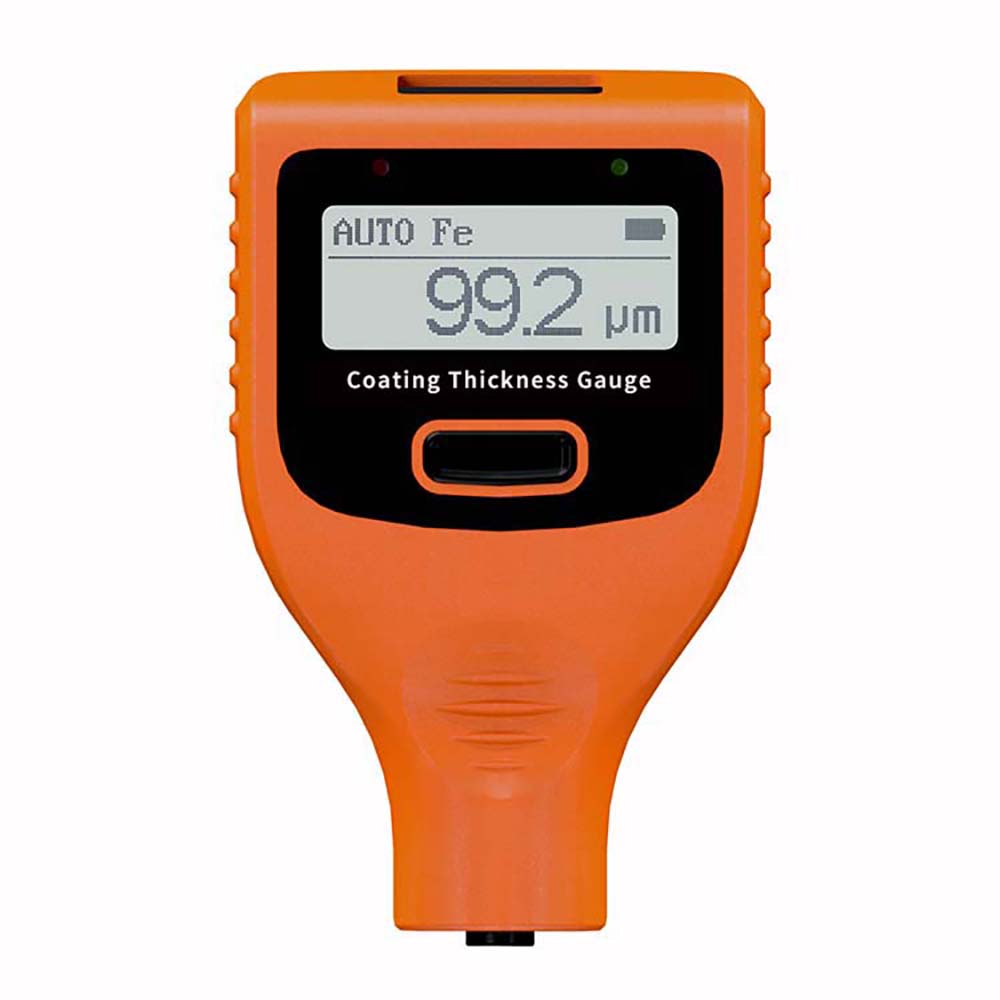

coating thickness gauge
• Dual screen display
• Ruby probe
• Reaction time less than 0.5 seconds
• Resolution up to 0.1μm
• Accuracy ±(2%+1μm) (EC-570S)
• Measurement range 0~2000μm
• Identification of galvanized iron substrate (EC-570)
• Indicator light prompt
• Data statistics and viewing
• Single button operation
• Zero calibration function
• Automatic shutdown
• Battery protection
FEATURES:
• Dual screen display
• Ruby probe
• Reaction time less than 0.5 seconds
• Resolution up to 0.1μm
• Accuracy ±(2%+1μm) (EC-570S)
• Measurement range 0~2000μm
• Identification of galvanized iron substrate (EC-570)
• Indicator light prompt
• Data statistics and viewing
• Single button operation
• Zero calibration function
• Automatic shutdown
• Battery protection
|
Model |
EC-570 |
EC-570S |
|
Probe position |
Internal |
|
|
Measurement principle |
Fe:Magnetic induction;NFe:Eddy current effect |
|
|
Measurement range |
0~2000μm |
|
|
Accuracy |
±(3%+1μm) |
±(2%+1μm) |
|
Resolution |
0.1μm(0~100μm)；1μm(>100μm) |
|
|
Unit |
mm,mm,mil |
|
|
Iron galvanized identification range |
3~500μm |
/ |
|
User calibration method |
Zero calibration |
|
|
Probe trigger force |
0.5~1.2N |
|
|
Minimum radius of curvature of substrate |
Convex 5mm Concave 25mm |
|
|
Minimum measurement area |
Diameter 15mm |
|
|
Minimum substrate thickness |
Fe:0.30mm;NFe:0.05mm |
Fe:0.20mm;NFe:0.03mm |
|
Reaction time |
Less than 0.5 seconds |
|
|
Display |
Dual screen display |
|
|
Operation temperature |
-10~+50℃ |
|
|
Storage temperature |
-20~+60℃ |
|
|
Power supply |
2 AAA 1.5V alkaline batteries; 2 AAA 1.2V rechargeable batteries |
|
|
Protection class |
IP40 |
|
|
Dimensions |
101*64*25mm |
|
|
Material |
ABS |
|
|
Weight |
About 65g (without batteries) |
About 60g (without batteries) |
