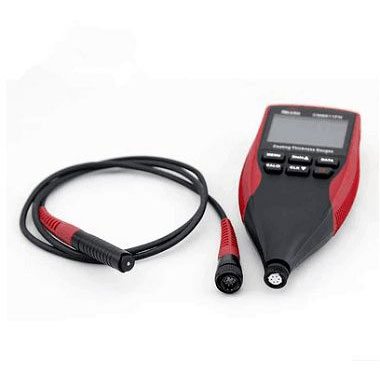

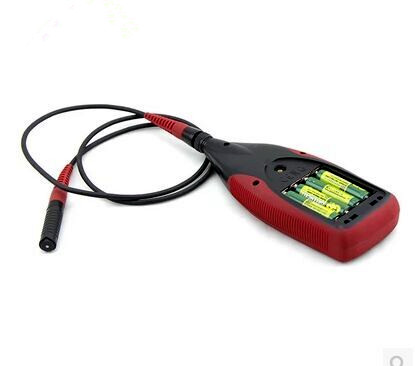

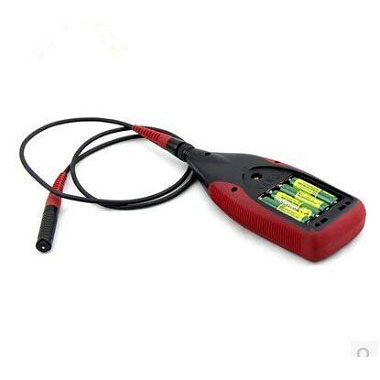

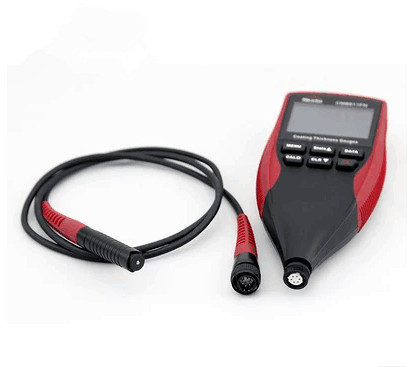

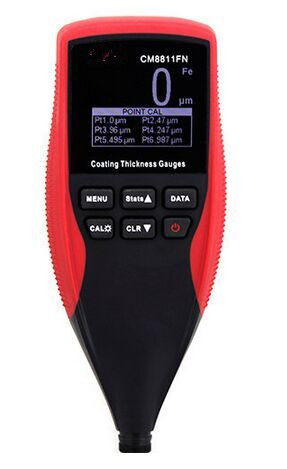

Coating Thickness Gauge

Range: 0-1250μm /0-50mil

Resolution: 0.1μm/mil

Accuracy: ±(2%+2μm) / ±(2%+0.1mil)

Display: TFT 320*240 LCD

Test Limits: Surface curvature: convex 1.5 mm / concave 7 mm

Minimum test surface: Φ8mm

Minimum thickness of base material: 0.4mm

Operation Condition(not in high magnetic field):Temperature: 0-40C

                                                                                        Humidity: 20%RH-90RH

Product Size: 166 x 68 x 30mm

Weight: 180g (batteries included)

Function:

Measuring: Continuous and Single Measurement available

Display: Simultaneously display Measuring Value, Average Value, Maximum Value, Minimum Value and Standard Deviation

Memory: 80 data store

Unit: Metric/Imperial switchable (mil/um selectable)

Backlight:  Brightness adjustable, clear and easy reading under any light condition

Alarm: Set higher and lower alarm range for measuring

Calibration: Zero-in, 2 points calibration and multi-point calibration selectable

Battery: Low battery indication

Language: English and Chinese selectable (customization for other languages available)

Data Delete: delete a single data or clear all the data

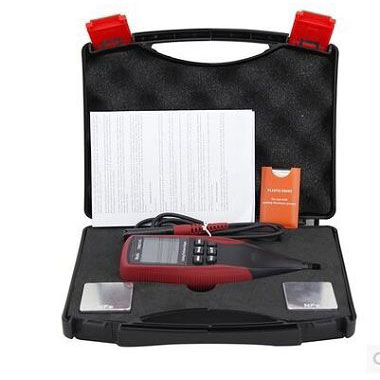

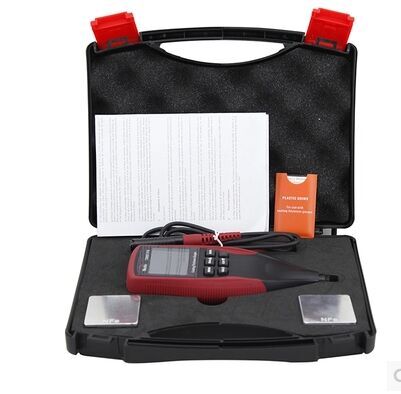

Standard Packing:

Fe / NFe 2 in one probe x1

Plastic test shims x 1set

Calibration plates (Steel and Aluminum).

Instruction manual x 1

Carrying tool case x 1
