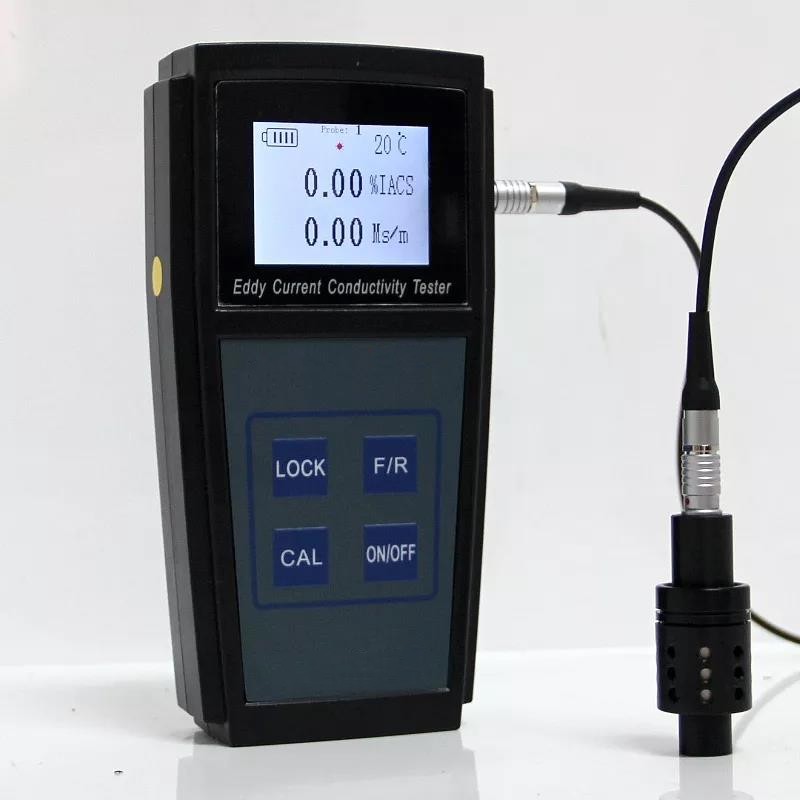

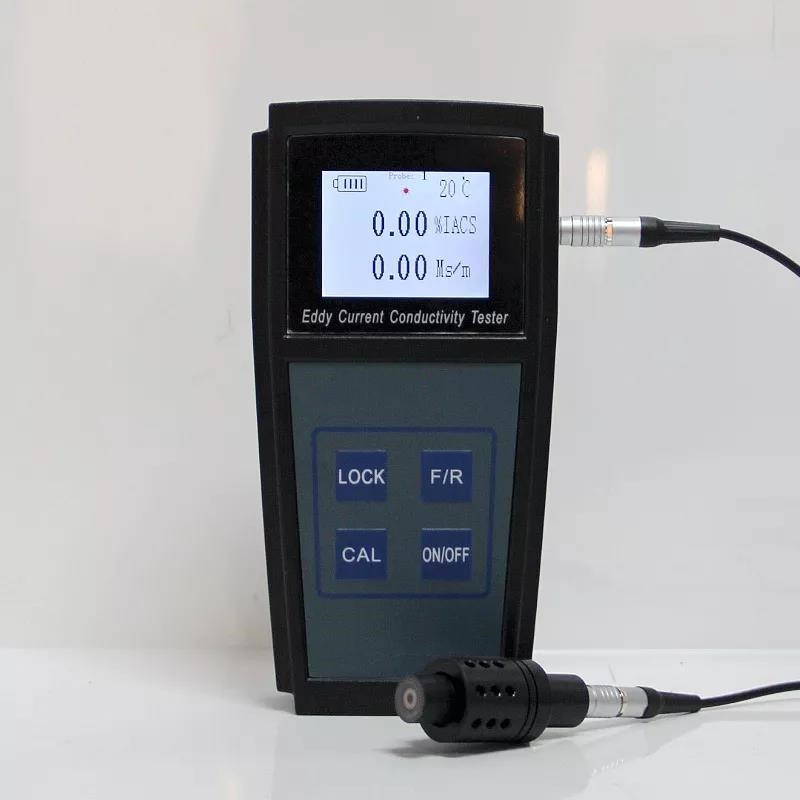

Eddy Current Eletrical Conductivity Meter
Application:
Absolute measurement of electrical conductivity of nearly all non-ferrous metals;(Ti – Ag)
In the aerospace and automotive industry, monitor the process of heat treatment, the strength and hardness of aluminum alloy;
Test the conductivity when the aluminum have not been oxidized;
Measurement the purity of non-ferrous metals;
Test the resistivity of conductive materials;
Analyze thermal properties of materials.
Application:
Absolute measurement of electrical conductivity of nearly all non-ferrous metals;(Ti – Ag)
In the aerospace and automotive industry, monitor the process of heat treatment, the strength and hardness of aluminum alloy;
Test the conductivity when the aluminum have not been oxidized;
Measurement the purity of non-ferrous metals;
Test the resistivity of conductive materials;
Analyze thermal properties of materials.
FD-101 Technical parameters
|
NAME |
CONTENT |
NOTE |
|
|
Measurement technology |
Eddy current |
||
|
Operating frequency |
60KHz |
||
|
Display screen |
Monochrome |
||
|
L*B*H |
180*76*35 mm |
||
|
Instrument case |
Anti-intense impact, water-proofing polyester |
Match the fixed belt the leather protective covering |
|
|
Weight |
300g |
Contain battery |
|
|
Power supply |
High capacity, high performance lithium polymer battery |
Not back light illuminate may keep on working about 100 hours. |
|
|
Measuring range |
1%IACS—105%IACS(0.58 MS/m -61MS/m) |
||
|
Distinguishing rate |
0.01% IACS |
||
|
Measuring accuracy |
5°Cto 40°C 23%IACS :±0.1%IACS 100%IACS :±0.3%IACS |
||
|
Temperature compensation |
5°C~40°C |
Automatic compensation function |
|
|
Normal work environment |
Relative humidity |
0~95% |
|
|
Operating temperature |
5°C~40°C |
||
|
Language |
Chinese, English |
||
|
Fitting |
Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter |

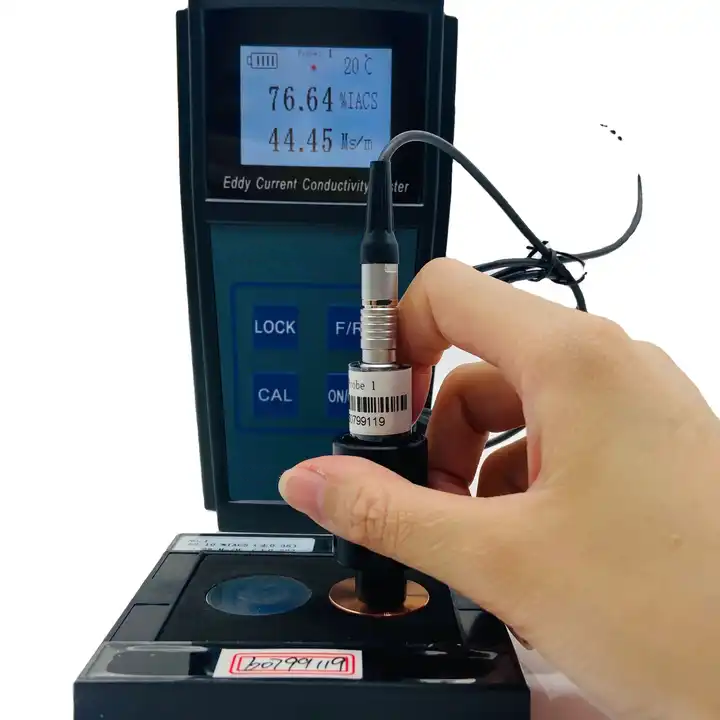

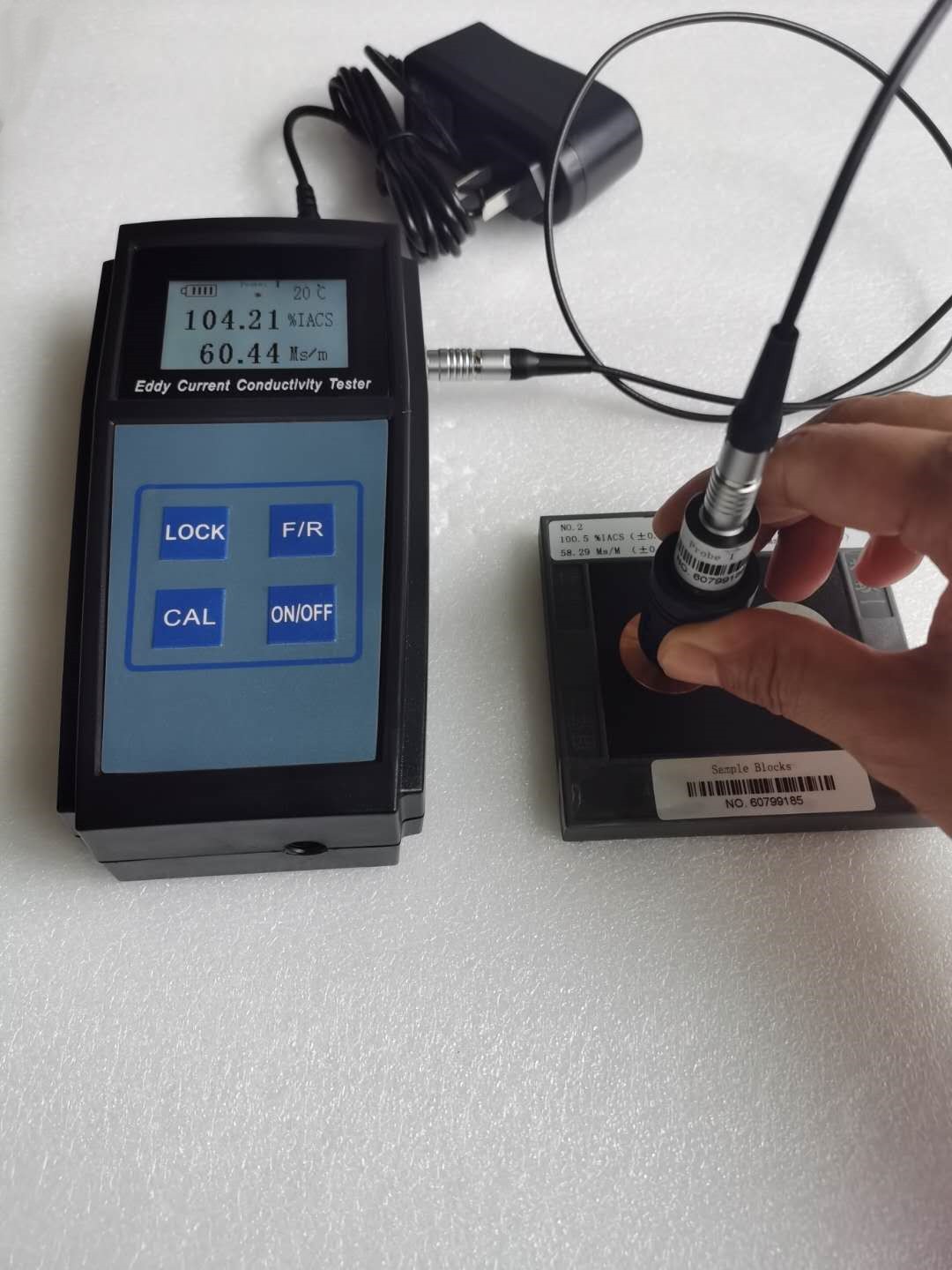

Conductivity sample installs in the instrument, to verify and guarantee temperature compensation |
|
|
Probe Diameter |
12.7mm (Applicable to minimum measuring area diameter at 60KHz is13mm.) |
||
