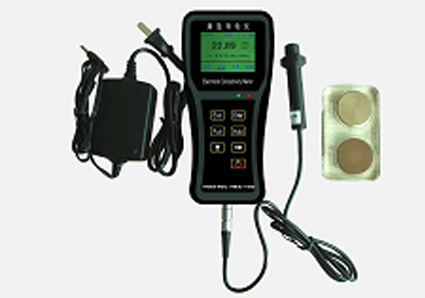

Eddy Current Electric Conductivity Meter

Product ID : FD-102

Product Description

Application:

Absolute measurement of electrical conductivity of nearly all non-ferrous metals;(Ti – Ag)

In the aerospace and automotive industry, monitor the process of heat treatment, the strength and hardness of aluminum alloy;

Test the conductivity when the aluminum have not been oxidized;

Measurement the purity of non-ferrous metals;

Test the resistivity of conductive materials;

Analyze thermal properties of materials.

HEC-102 Technical parameters

NAME	CONTENT	NOTE
Measurement technology	Eddy current
Operating frequency	60KHz
Display screen	240X320 pixels TFT-LCD	4 kinds of background color
LBH	1808035 mm
Instrument case	Anti-intense impact, water-proofing polyester	Match the fixed belt the leather protective covering
Weight	245g	Contain battery
Power supply	High capacity, high performance lithium polymer battery	Not back light illuminate may keep on working about 100 hours.
Measuring range	1%IACS—105%IACS(0.58 MS/m -61MS/m)
Distinguishing rate	0.01% IACS
Probe compensated	0.05mm
Measuring accuracy	0°Cto 50°C 23%IACS :±0.25%IACS 100%IACS :±0.5%IACS
Temperature compensation	0°C~50°C	Automatic compensation function
Normal work environment	Relative humidity	0~95%
Operating temperature	0°C~50°C
Language	Chinese, English
PC communication	USB
Fitting	Portable box; probe; probe in cable; operating manual; conductivity standard sample; adapter	Conductivity sample installs in the instrument, to verify and guarantee temperature compensation
Probe Diameter	12.7mm (Applicable to minimum measuring area diameter at 60KHz is13mm.)
Reading storage	Preserve 1000 survey data
