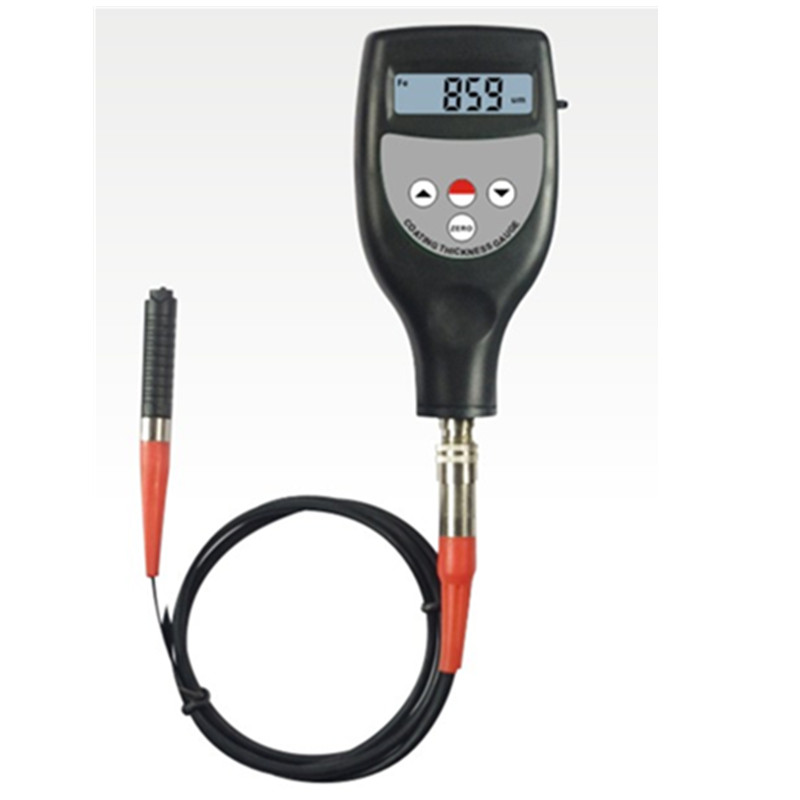

Coating Thickness Gauge

FEATURES
* It meets the standards of both ISO2178 and ISO-2361as well as DIN, ASTM and BS. Suitable for the laboratory and for use in harsh field conditions.
* The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) on magnetic materials (e.g. iron, nickle etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc.

* The N probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.

SPECIFICATIONS
Display：4 digits, 10 mm LCD
Range： 0~1250 um/0~50mil
Resolution： 0.1 um (0~99.9um)
1 um (over 100um)
Accuracy：±1~3%n or 2.5 um or 0.1mil
(Whichever is the greater)
PC interface: with RS-232C interface
RS-232C cable & software: not included
(The above are optional accessories)
Power supply： 2x1.5 AAA(UM-4) battery
Operating condition: Temp. -5~45℃, Humidity <80%

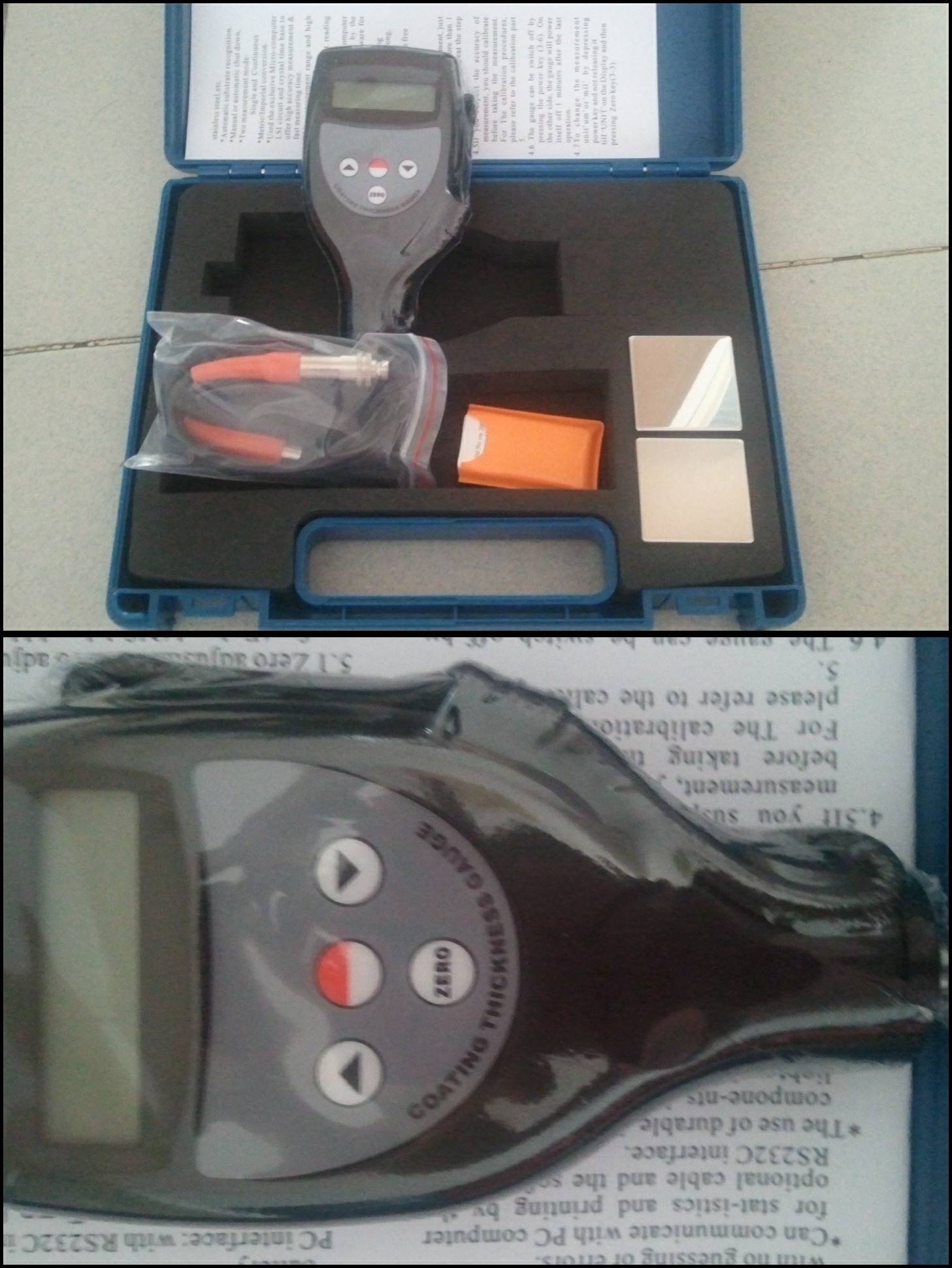

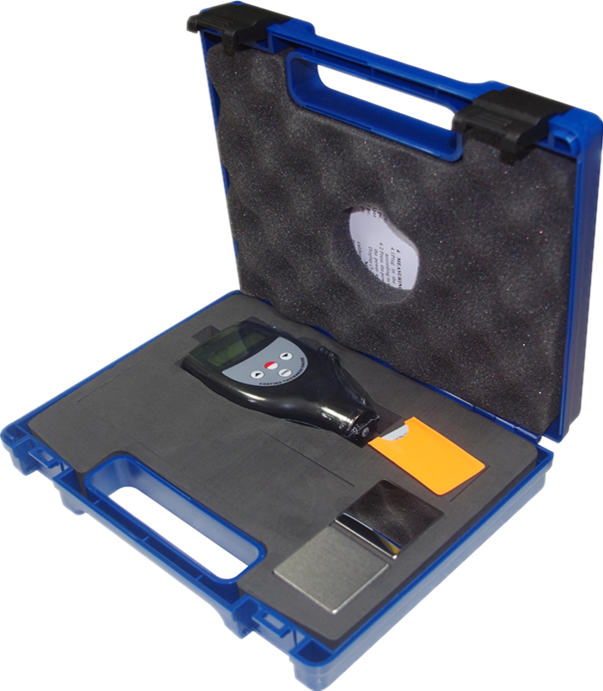

Accessories：

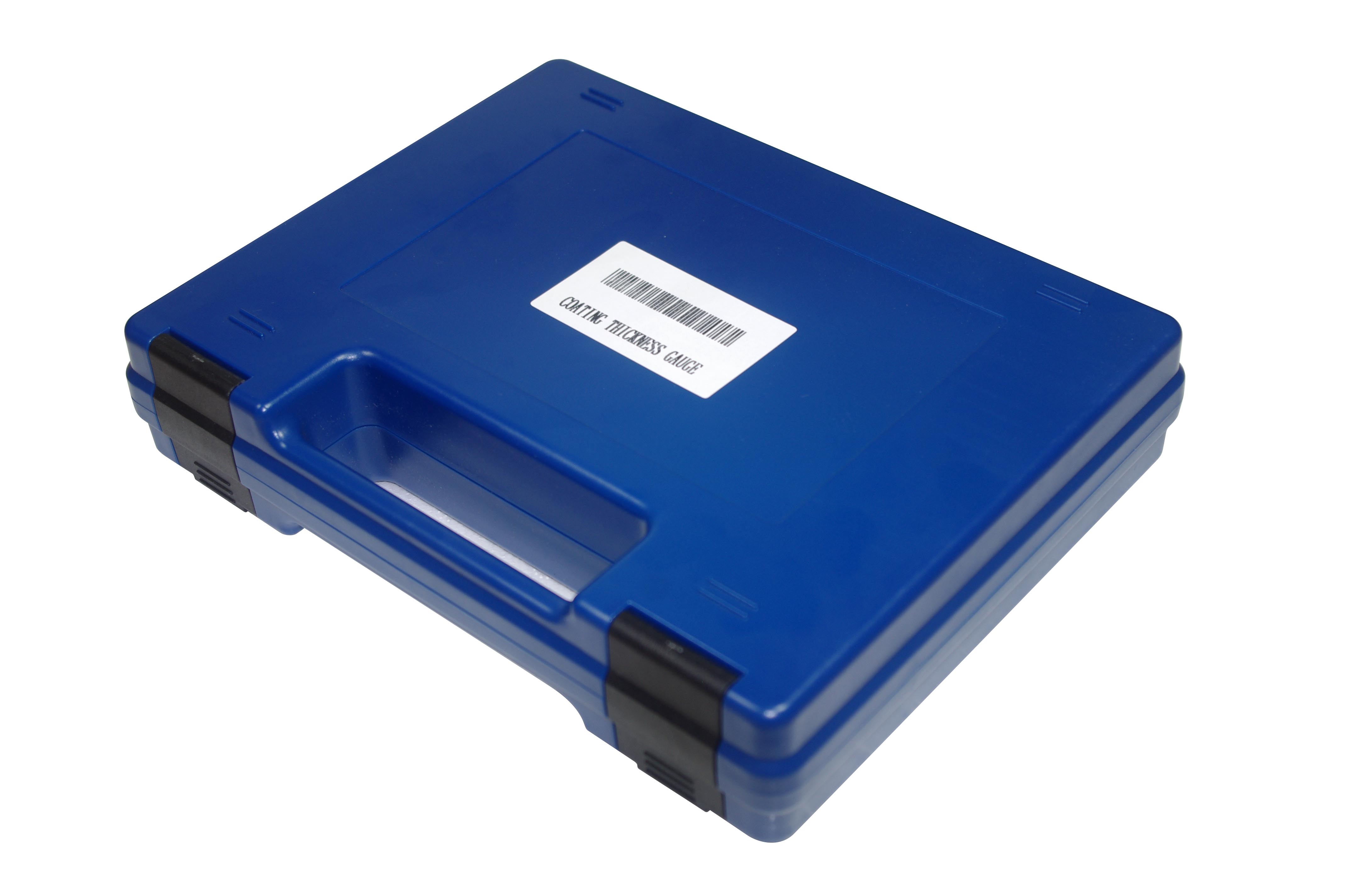

Carrying case ............... 1 pc.
Operation manual ............ 1 pc.
FN probe ......................1 pc.
Calibration foils............1set
Substrate (Iron).... .........1 pc.
Substrate (Aluminium).........1 pc.
