Product Description
Outline

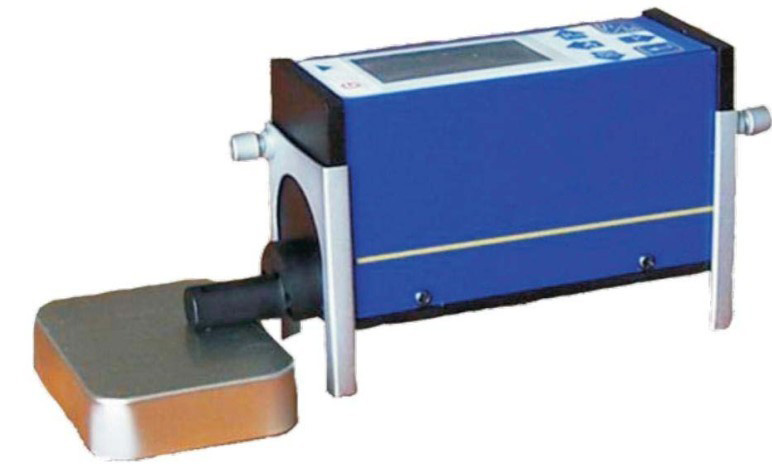

The Surface Roughness Tester is a small handheld mobile measurement that suitable for production environment. Simple operation, overall function, fast measurement, accuracy stability, convenience, it can measure the newest international standard the main parameter. This tester executes international standards comprehensively and strictly.
Features
- High accuracy inductance pickup;
- 13 parameters;
- Using DSP for data processing and control, high speed, low power consumption;
- Four filtering methods of RC、PC-RC、GAUSS and D-P;
- Compatible with four standards of ISO、DIN、ANSI and JIS;
- Can store 15 sets of measurements results;
- 128*64 dot matrix LCD display all parameters, graphs, Chinese and English menu;
- Built-in lithium ion chargeable battery and control circuit have high capacity;
- Built-in lithium ion chargeable battery and control circuit have high capacity;
- Design of mechanical and electrical integration is adopted to achieve small bulk, light weight and easy usage;
- Built-in standard RS232 interface enables communication with PC;
- Automatic switch off, memory and various prompt instructions;
- Optional measurement platform etc.
Technical parameters
|
Item
|
Parameter
|
|
|
Measuring range
|
Z Axis(Vertical）
|
160μm
|
|
X Axis(Horizontal）
|
17.5mm
|
|
|
Resolution
|
Z Axis(Vertical）
|
0.01μm/±20μm
|
|
0.02μm/±40μm
|
||
|
0.04μm/±80μm
|
||
|
Measurement item
|
Parameters
|
Ra, Rq, Rz,Rt, Rp, Rv, RS, RSm, Rz(JIS), Ry(JIS), Ry(JIS) , RSk, R3z, Rmax,
|
|
Standard
|
ISO, ANSI, DIN, JIS
|
|
|
Graphic
|
Roughness profile，Material ratio curve，Direct profile
|
|
|
Filter
|
RC, PC-RC, Gauss, D-P
|
|
|
Sampling length (lr)
|
0.25, 0.8, 2.5mm
|
|
|
Assessment length ln）
|
In=lr×n n=1~5
|
|
|
Pickup
|
principle
|
Differential inductance
|
|
Stylus
|
Natural Diamond, 90B cone angle, 5μm tip radius
|
|
|
Force
|
<4mN
|
|
|
Skid
|
Ruby，Longitudinal radius 40mm
|
|
|
Sliding speed
|
lr=0.25, Vt=0.135mm/s
|
|
|
lr=0.8, Vt=0. 5mm/s
|
||
|
lr=2. 5, Vt=1mm/s
|
||
|
Return Vt=1mm/s
|
||
|
Accuracy
|
≤ ±10%
|
|
|
Repeatability
|
≤ 6%
|
|
|
Power supply
|
Built-in Lithium ion battery，AC adapter 8.4V,800mA
|
|
|
Dimensions(L×W×H)
|
119×47×65mm
|
|
|
weight
|
approximately 380g
|
|
Standard Delivery
TR200 Unit
Standard sensor
Model for multi-standard groove
Power adapter
Optional accessories
Measurement platform
Sensor holes
Surface sensor
Sensor groove
Extension rod
Optional accessories
Measurement platform
Sensor holes
Surface sensor
Sensor groove
Extension rod
Lateral transfer bar
PC
