Trinocular Continuous Zoom Stereo Microscope

Features

l  Transmitted and reflected LED light source, observe opaque, transparent and translucent objects

l  Two light paths output, one for observation, and the other for camera shooting

l  Adopting advanced optical microscopy and modern imaging, analysis, and measurement integration technology

l  Detect the depth of penetration accurately, overlay a scale on the penetration image, and save, output

l  Perform macroscopic metallographic examination of welds, such as checking for defects such as porosity, slag inclusion, cracks, incomplete penetration, incomplete fusion, undercut, etc. in the weld seam or heat affected zone

Description

For Microscope SRA6555:

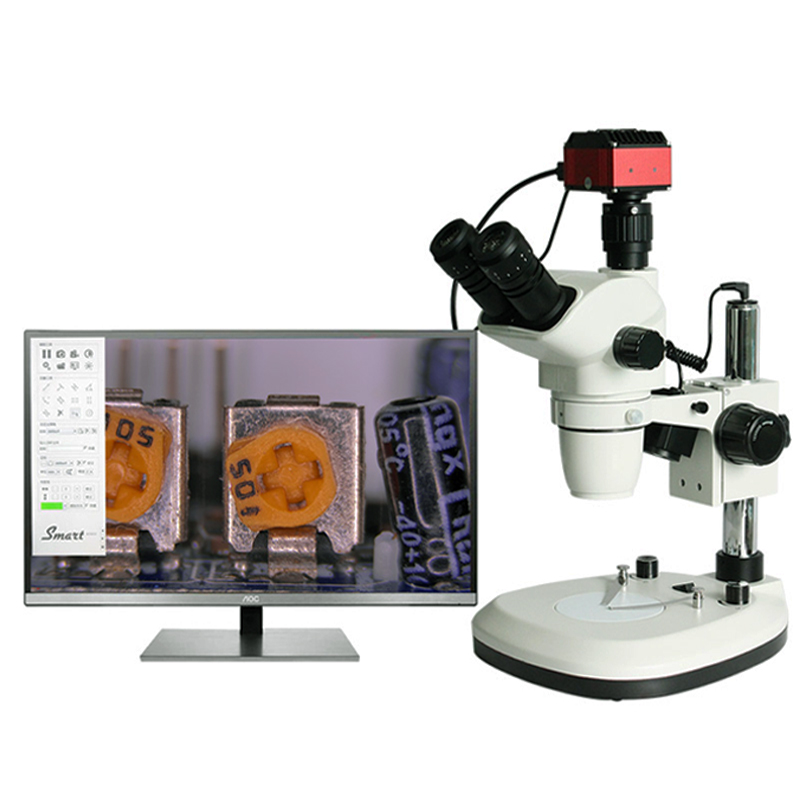

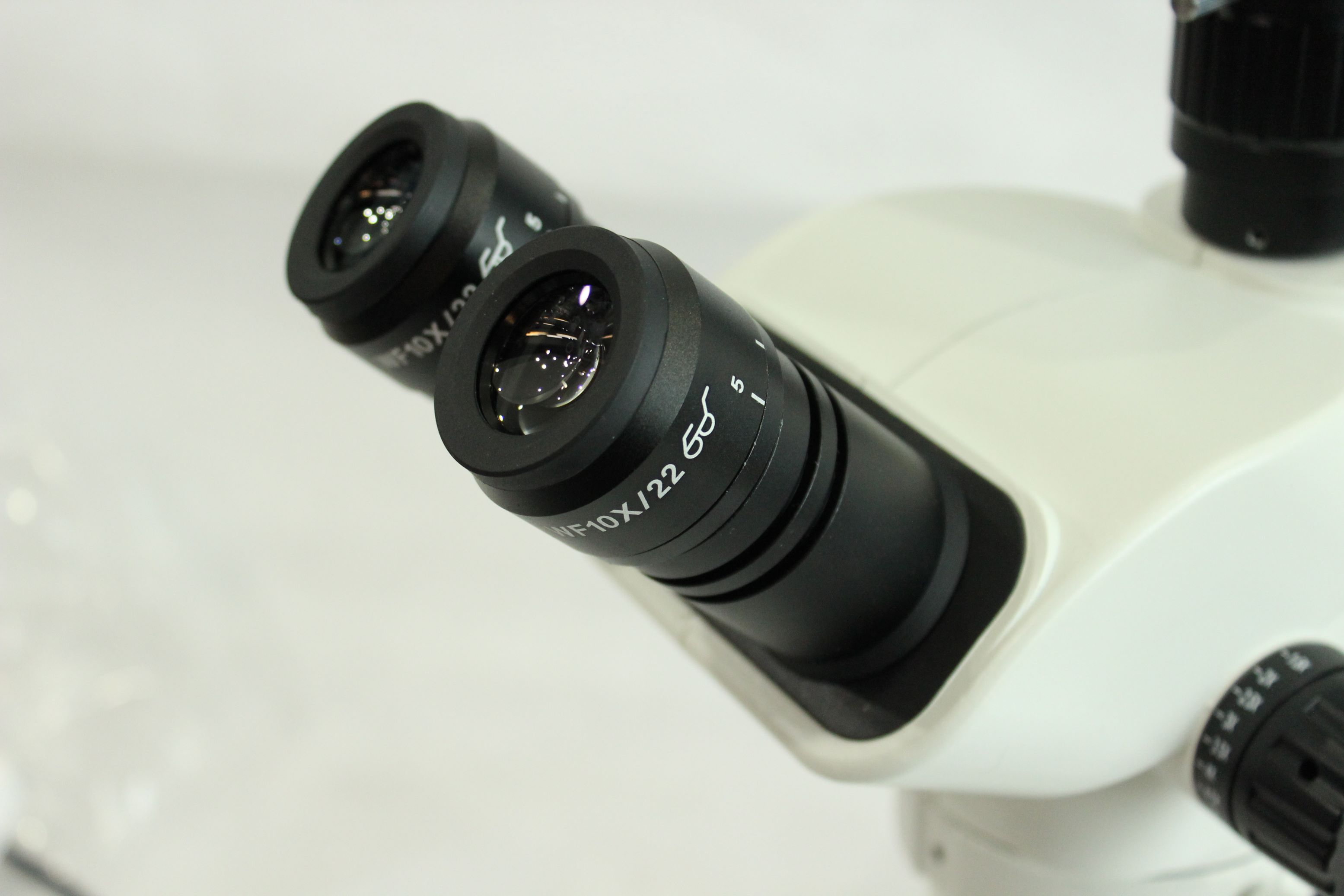

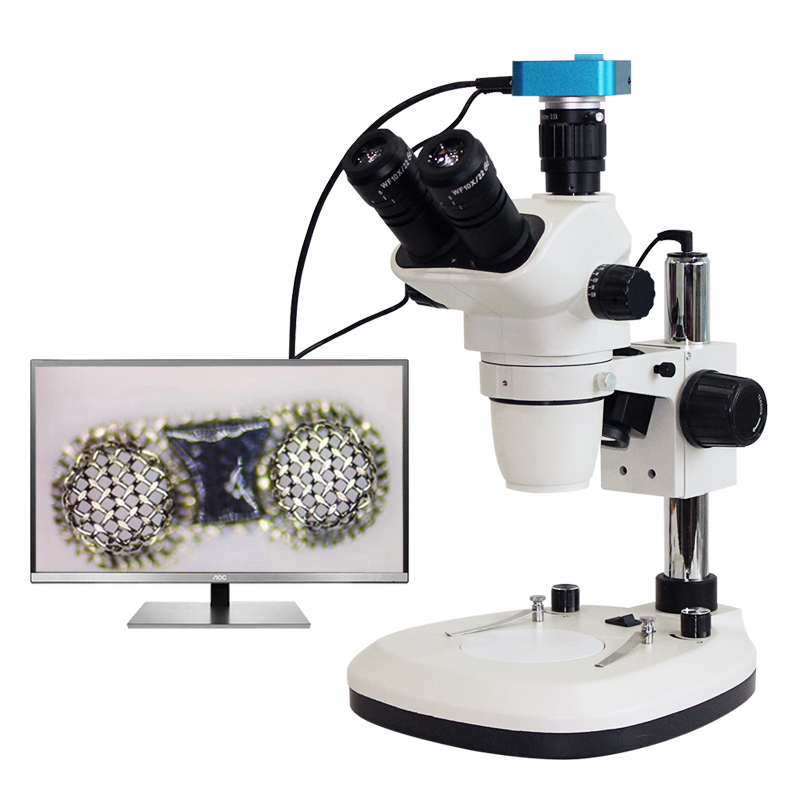

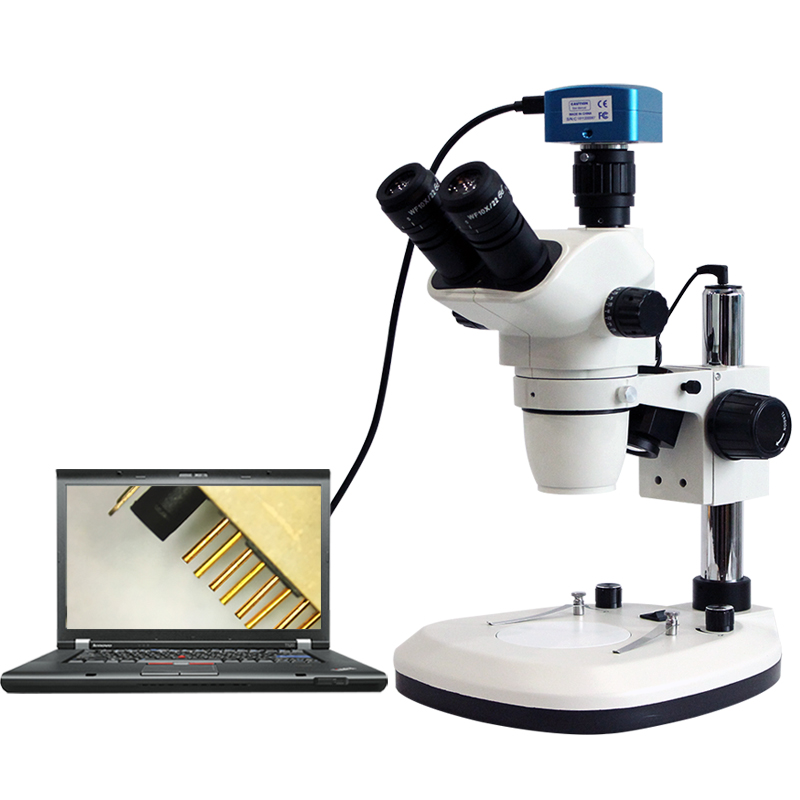

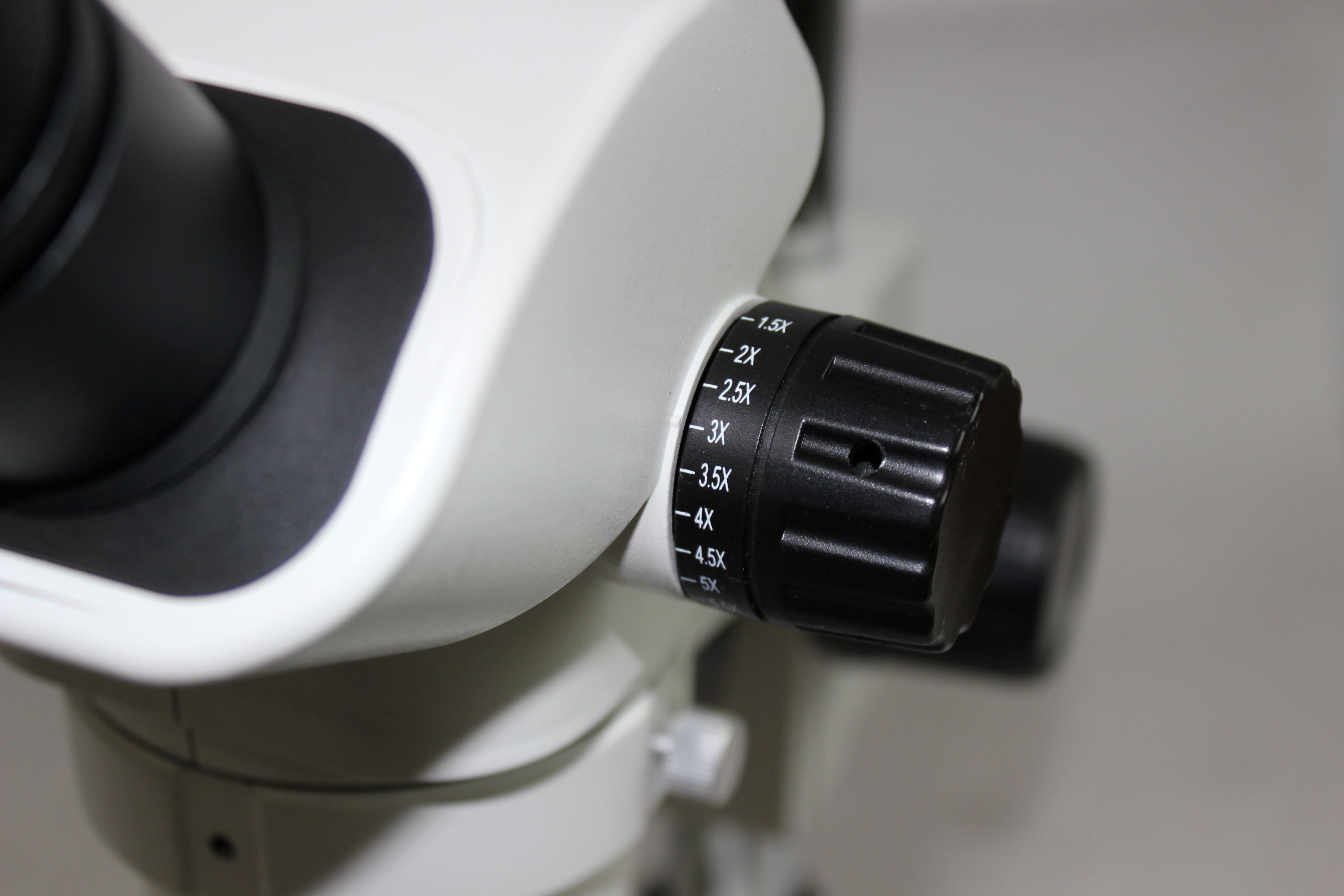

SRA6555 Trinocular Continuous Zoom Stereo Microscope is equipped with high eye point wide field eyepiece and continuous zoom objective. It has wide field of view, high resolution, strong stereoscopic sense and sharp image. It can also be equipped with photographic camera device, connected to the computer for observation, and the images can be edited, saved, printed.

It can measure and save the welding penetration generated by various welded joints (butt, corner, lap and T-joint, etc.), and can also do the macro metallographic inspection of welds. It is the first welding penetration measurement and inspection microscope to provide two methods to check the quality of welding.

It is also widely used in teaching demonstration, biological anatomy, seed inspection of agriculture and forestry, criminal investigation and detection of public security department, assembly and maintenance of electronic precision components, quality control of textile industry, auxiliary identification of cultural relics and stamps, and surface observation of various materials.

For Microscope Camera:

U3CMOS is an ultra-high performance USB3.0 CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device and USB3.0 is used as the data transfer interface.

U3CMOS hardware resolutions range from 3.0M to 18M and come with the CNC aluminum alloy compact housing.

U3CMOS comes with advanced video & image processing application; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The U3CMOS can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.

Specification

Optional Accessory

Packing List:
