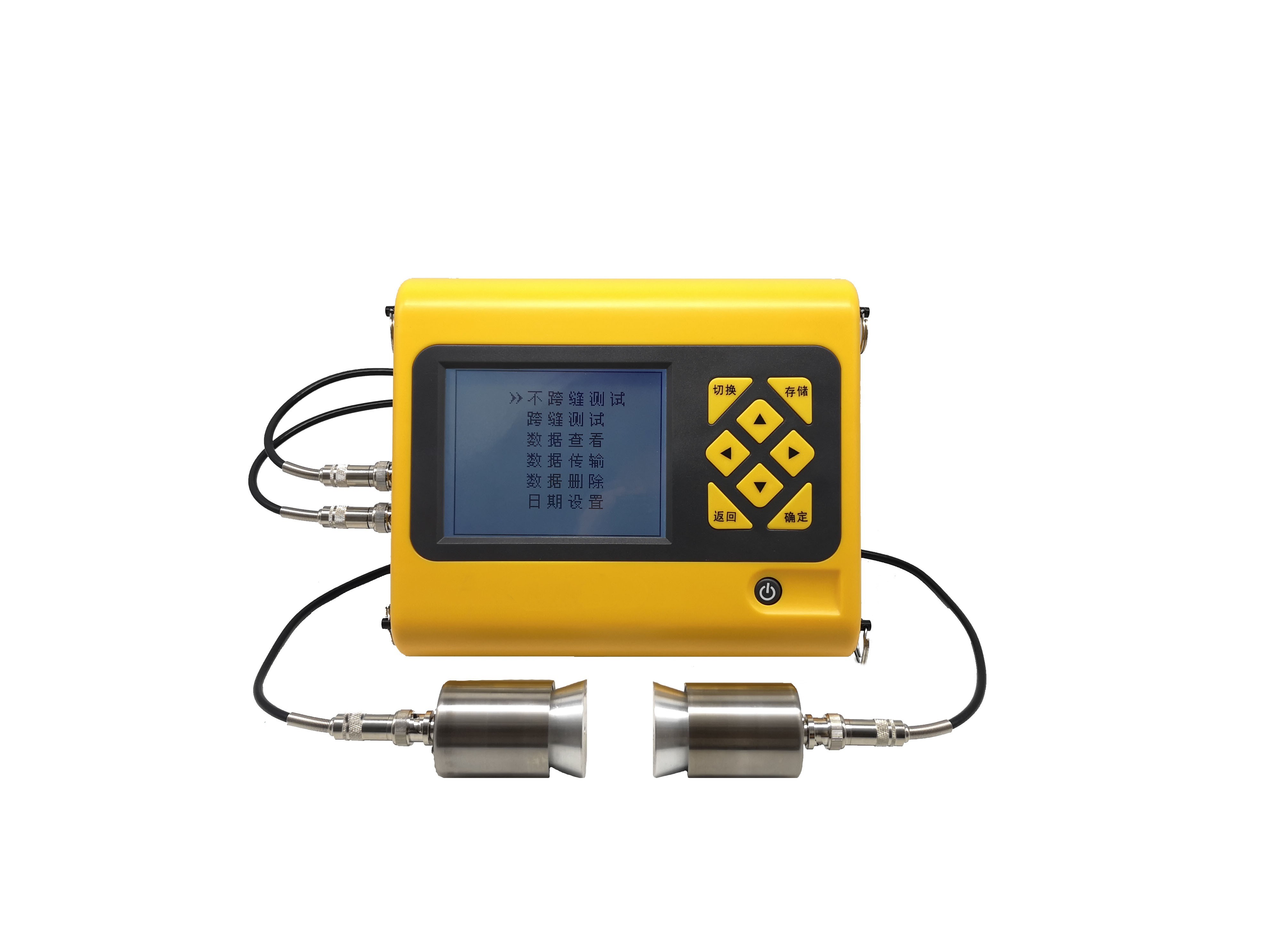

F51 Concrete Crack Depth Tester

l  Performance/Functions

1.      High Intelligence. Interpret sound wave propagation velocity and crevice depth value without human labor.

2.      Deep testable crevice depth. Testable crevice depth is up to 650 mm.

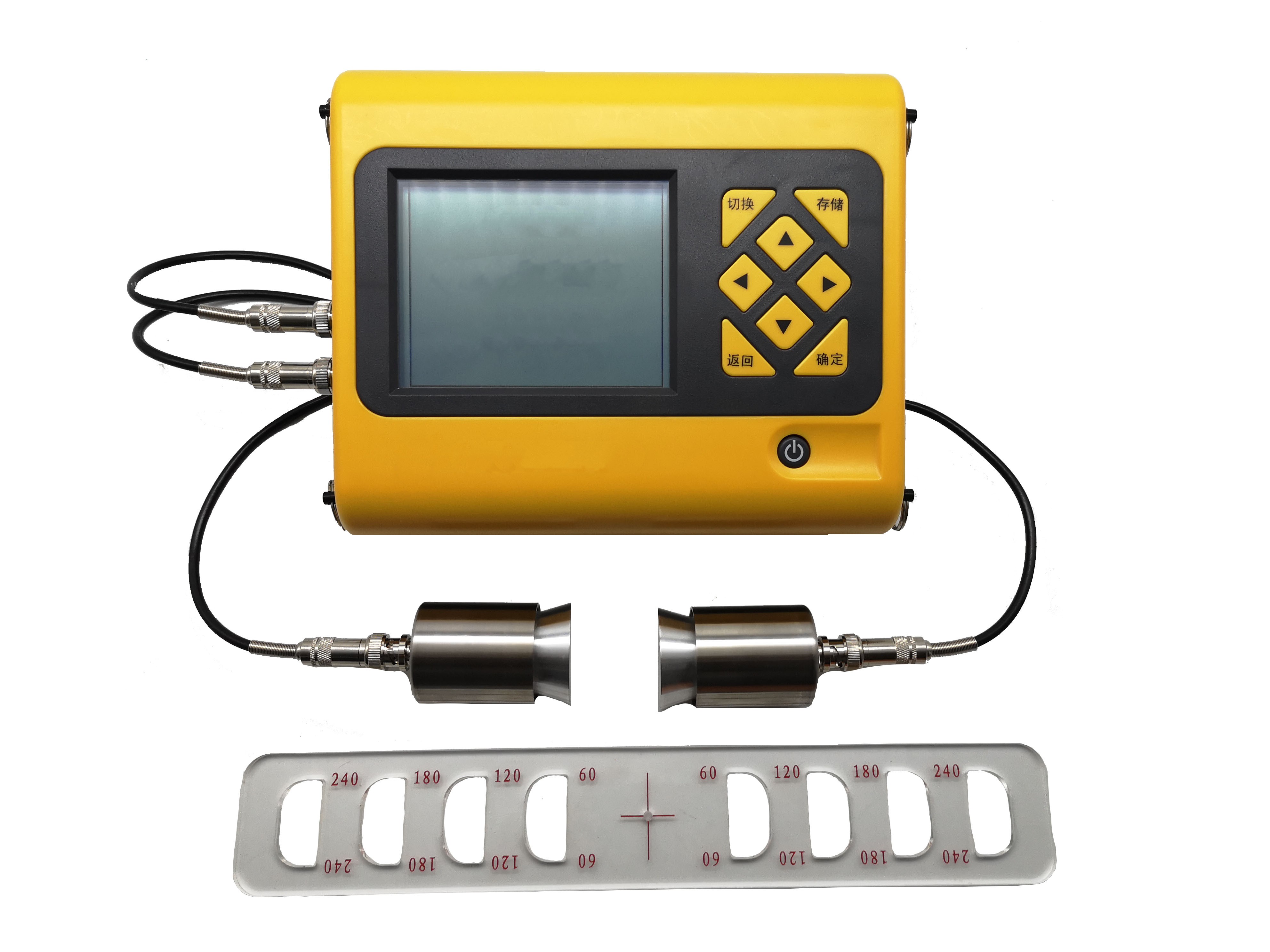

3.      Special scales. Improve test efficiency with portable, practical special scales.

4.      Being able to save date. It’s convenient for laborer data management.

5.      Powerful data processing and analysis software in Windows OS.

l  Technical Measurements

1. Testable  crevice depth scope:≤650 mm;

2. Permissible error:≤10％;

3. Data storage capacity :more than 6000 group test data;

4. Instrument size: 190mm×183mm×84mm;

5. Batteries:6 dry cells, work more than 10 times;

6. Resolution of LCD screen:160X128;
