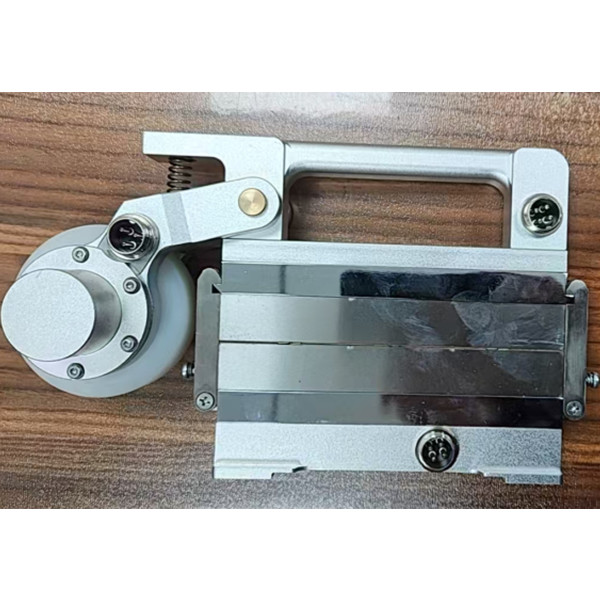

Elevator Wire Rope Ultrasonic Metal Testing Equipment Steel Rope Flaw Detector

Wire diameter: Φ6－16mm (need to set up various versions of the device);

Greatest speed of the steel wire for the sensor: 18.0 m/s

Recommended speed: 0.3 ~ 3 m/s;

Sampling Frequency: 5000Hz

Non deficient (LF localized deficiency) inspection capability:

Localized deficiency inspection accuracy: 98%;

Broken wire inspection accuracy 100%;

Broken wire quantitative inspection accuracy: ≥95%

Non deficient (LMA cross sectional metal area loss) inspection capability:

Metal cross sectional area loss inspection: ±0.05%;

Metal cross sectional area loss error or margin: ±0.5%

Axle position inspection capability: ±0.3%

Power source: computer battery 5V, flow (AC220 ±10％);

Work temperature: -20℃～40℃

Humidity: ≤90％RH
