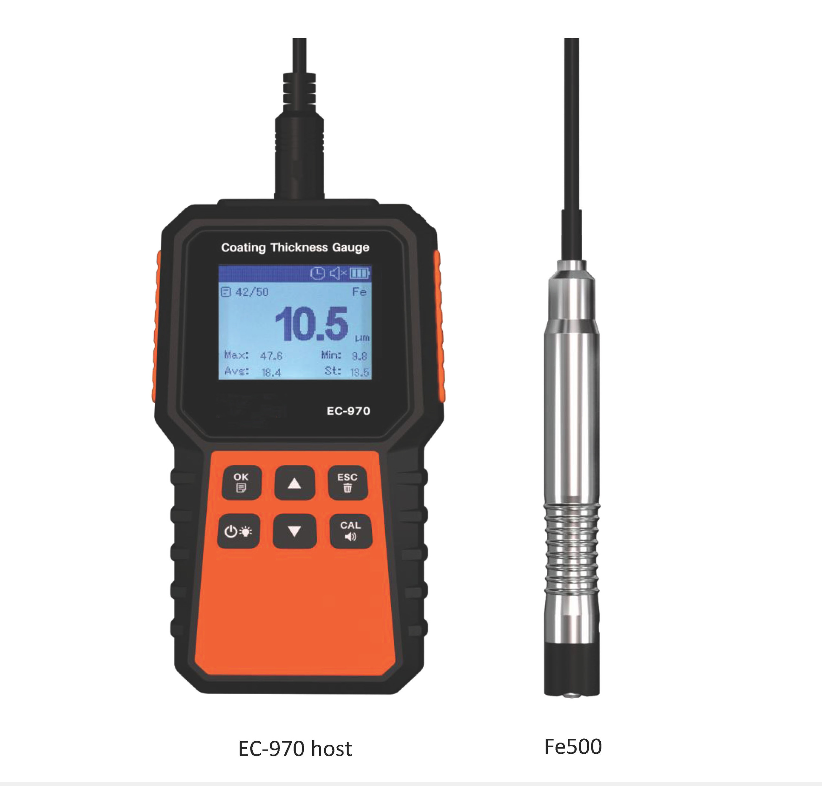

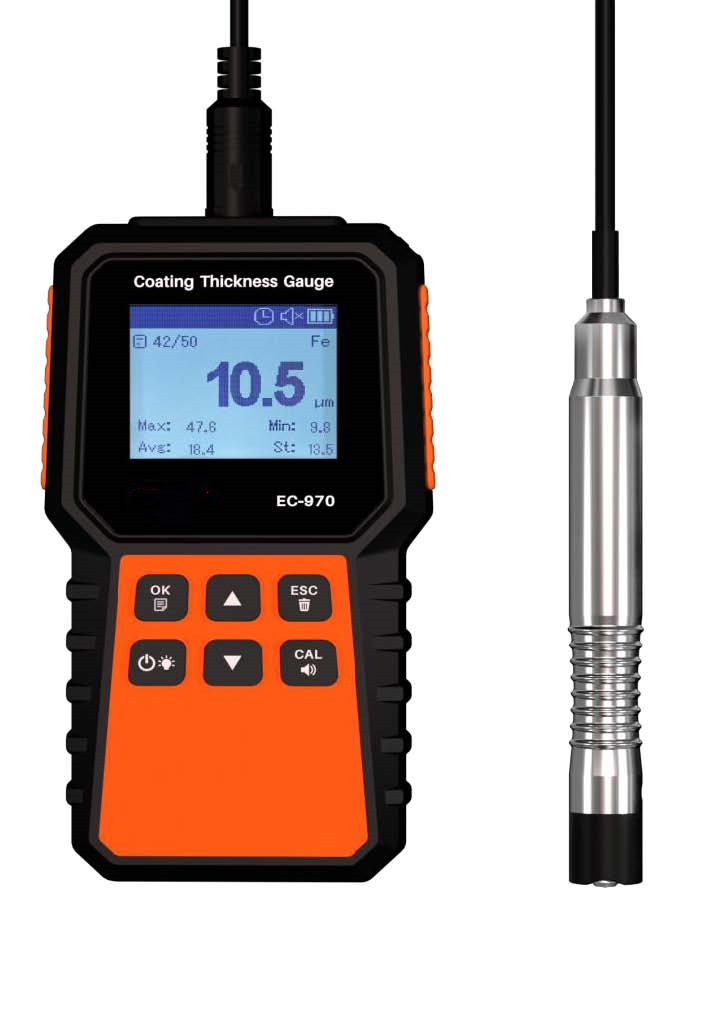

Coating Thickness Gauge

Product ID : EC-970

Product Attributes :

NOTE:

Avoid sun exposure.

Avoid direct contact with corrosive chemicals

Fall off carefully,

WARNING:

No private disassembly!。

Strictly prevent strong electricity, electrostatic impact!

Product Description

Coating Thickness Gauge

NOTE:

WARNING:

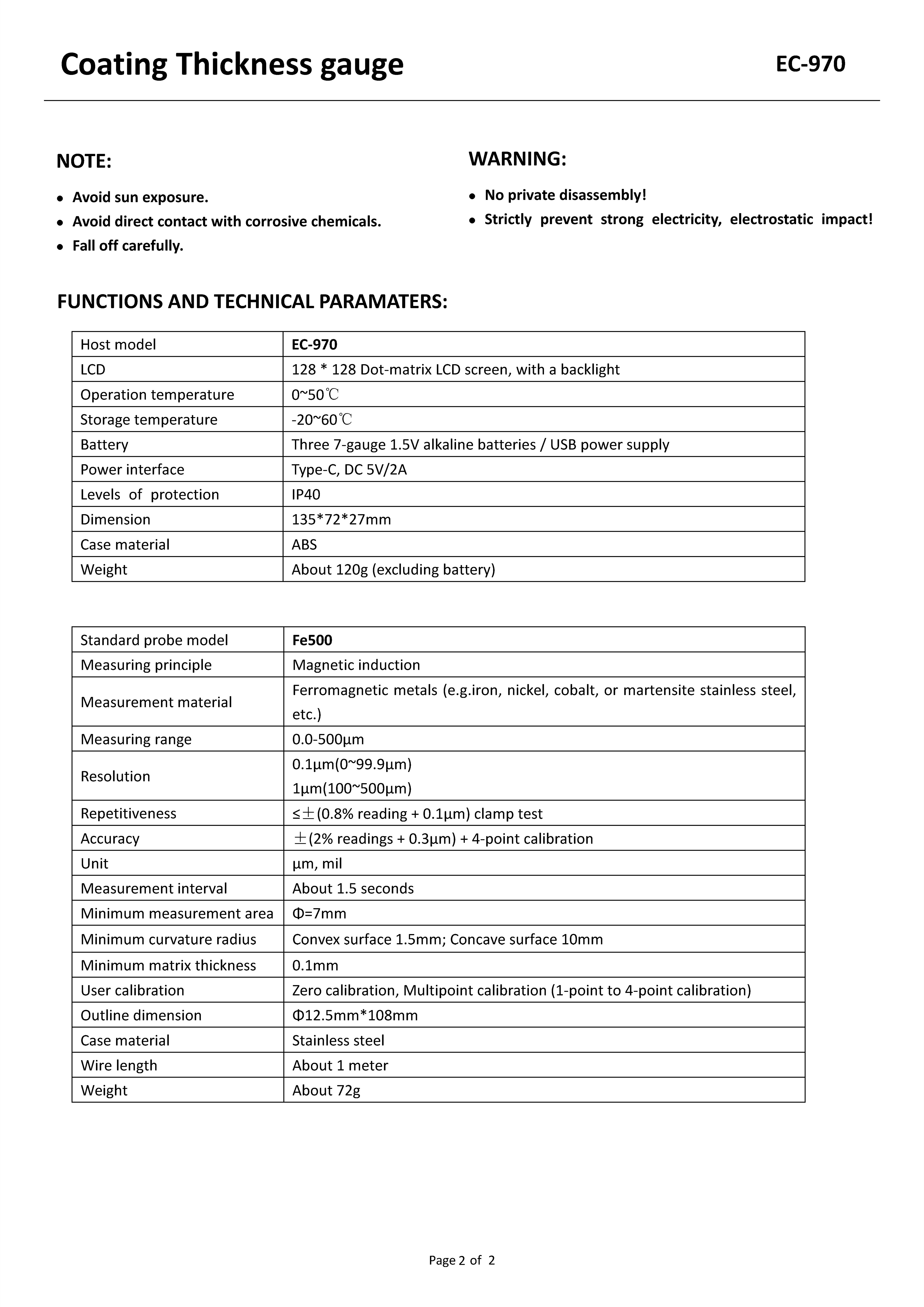

FUNCTIONS AND TECHNICAL PARAMETERS:

Host model	EC-970
LCD	128*128 Dot-matrix LCD screen, with a backlight
Operation temperature	0~50℃
Storage temperature	-20~60℃
Battery	Three 7-gauge 1.5V alkaline batteries / USB power supply
Power interface	Type-C, DC 5V/2A
Levels of protection	IP40
Dimension	1357227mm
Case material	ABS
Weight	About 120g (excluding battery)

Standard probe model	Fe500
Measuring principle	Magnetic induction
Measurement material	Ferromagnetic metals (e.g., iron, nickel, cobalt, or martensite stainless steel, etc.)
Measuring range	0.0-500μm
Resolution	0.1μm (0~99.9μm) 1μm (100~500μm)
Repetitiveness	≤±(0.8% reading + 0.1μm) clamp test
Accuracy	±(2% readings + 0.3μm) + 4-point calibration
Unit	μm, mil
Measurement interval	About 1.5 seconds
Minimum measurement area	D=7mm
Minimum curvature radius	Convex surface 1.5mm; Concave surface 10mm
Minimum matrix thickness	0.1mm
User calibration	Zero calibration, Multipoint calibration (1-point to 4-point calibration)
Outline dimension	Φ12.5mm*108mm
Case material	Stainless steel
Wire length	About 1 meter
Weight	About 72g
