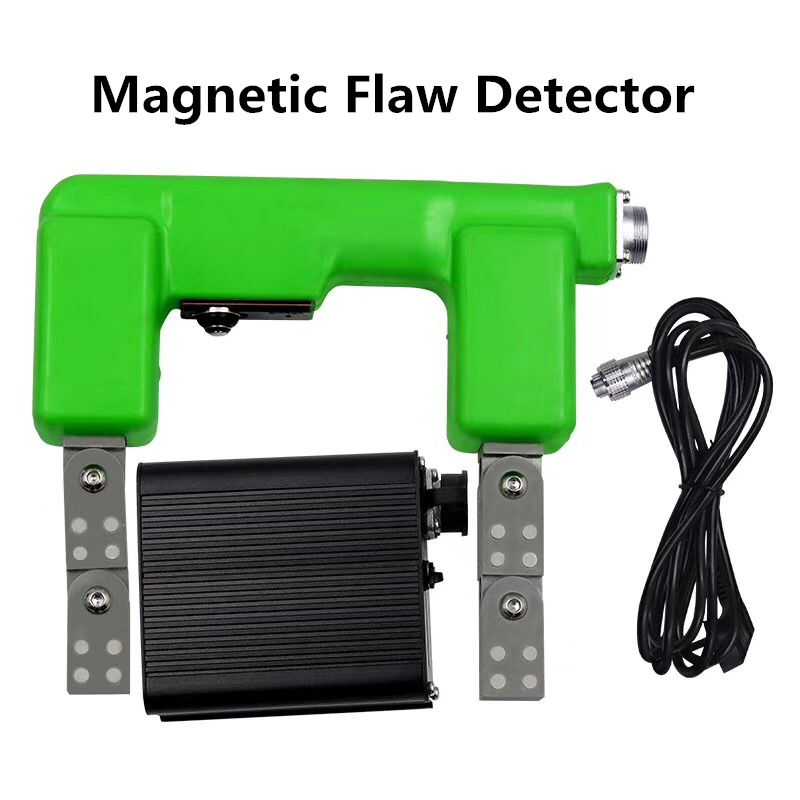

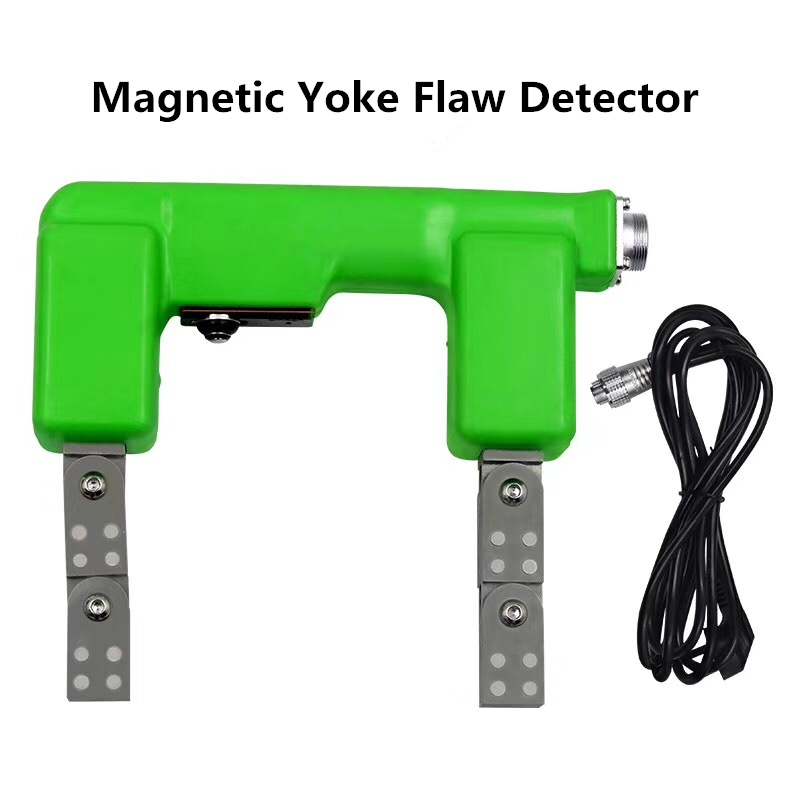

Magnetic yoke

Three power supply modes can be selected freely:

*Bedirectly connected to AC power supply for place with direct insert AC power supply;

*For place without direct insert AC power supply, AC magnetized power supply (AC battery pack) can be used to realize AC magnetization inspection function.

*DC magnetized power supply (DC battery pack) also can be selected to realize function of DC magnetization.

*AC magnetized power supply (AC battery pack) has the protection function of stable voltage output, over-charge, over-current, over-discharge.

*Automatic power off will be started when the lifting force is insufficient, so as to ensure the detection sensitivity.

*Power display function, which can display current battery capacity, as well as with sound-light alarm function.

*Built-in microcomputer chip, stable output voltage to ensure detection sensitivity.

*Adjustable magnetization intensity

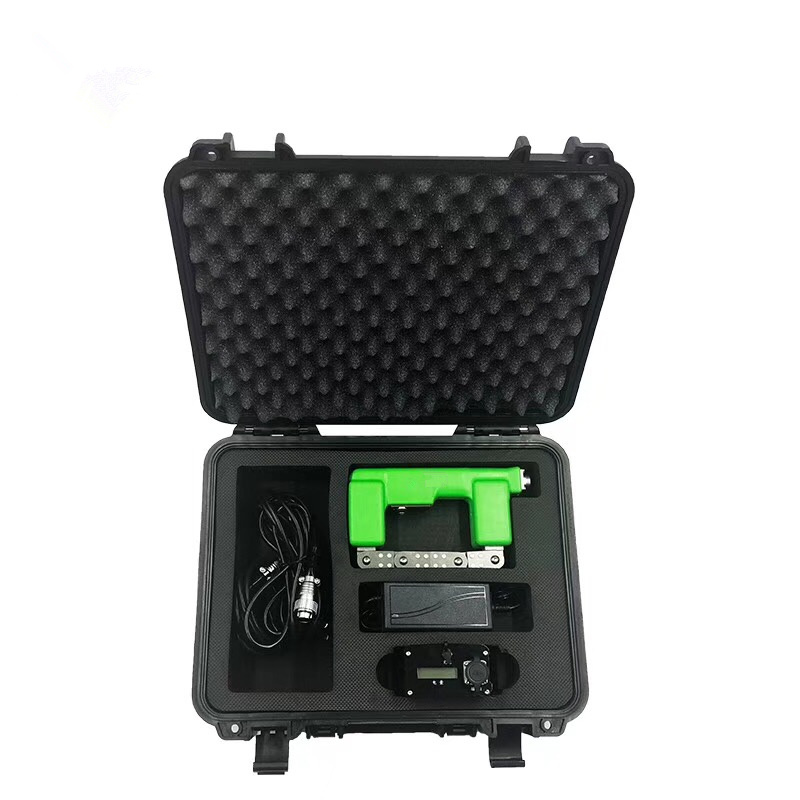

*Special working pockets, which can carry battery pack, magnetic suspension, contrast agent, magnetic yoke probe, etc.

Technical parameter

*Working temperature:  -10～+40℃

*Storage temperature: -20～50℃

*Relative humidity: No condensing<80%

*Operation temperature rise: <18℃

*Duty cycle: >50%

*Sensitivity:type A1 standard specimen 15/50 grooves are clearly displayed

*Minimum AC boost: >4.5kg(44N), maximum AC boost: 7kg(68.6N)

*Minimum DC boost:>18.1kg(177N), maximum DC boost: 23kg (225N)
