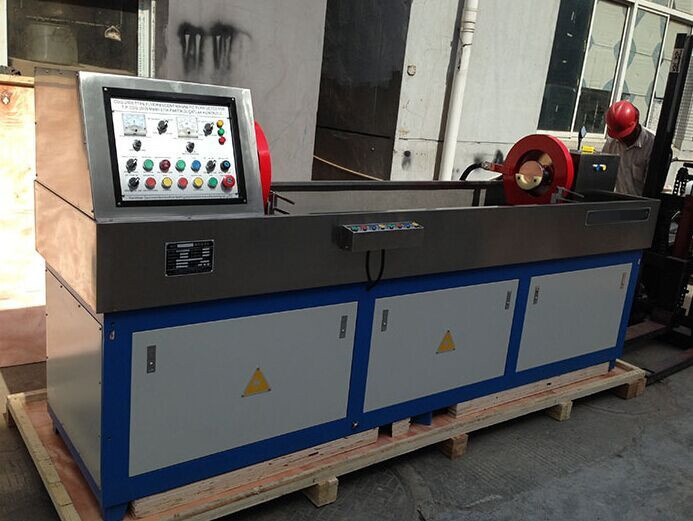

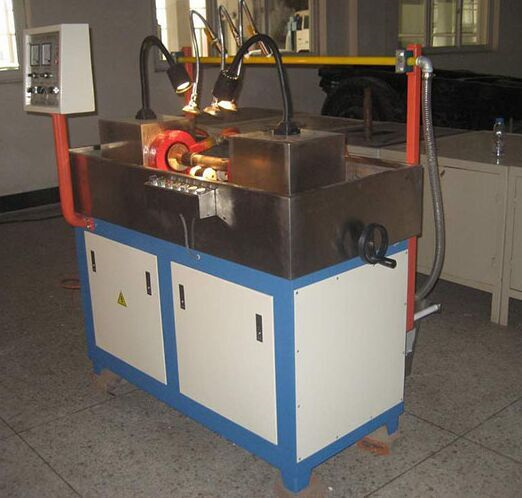

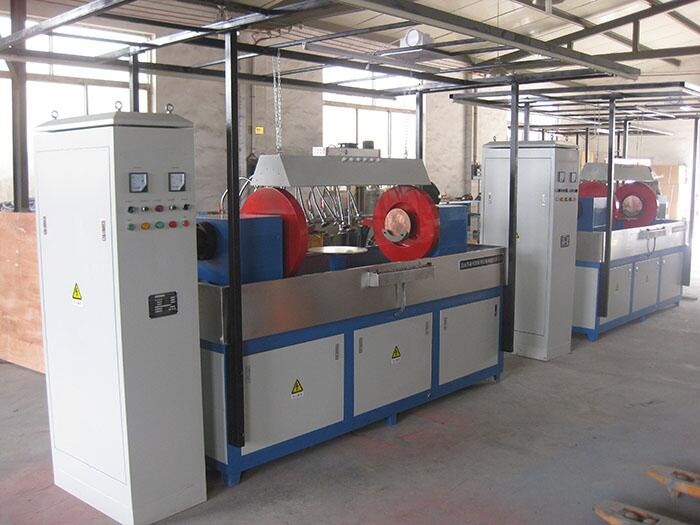

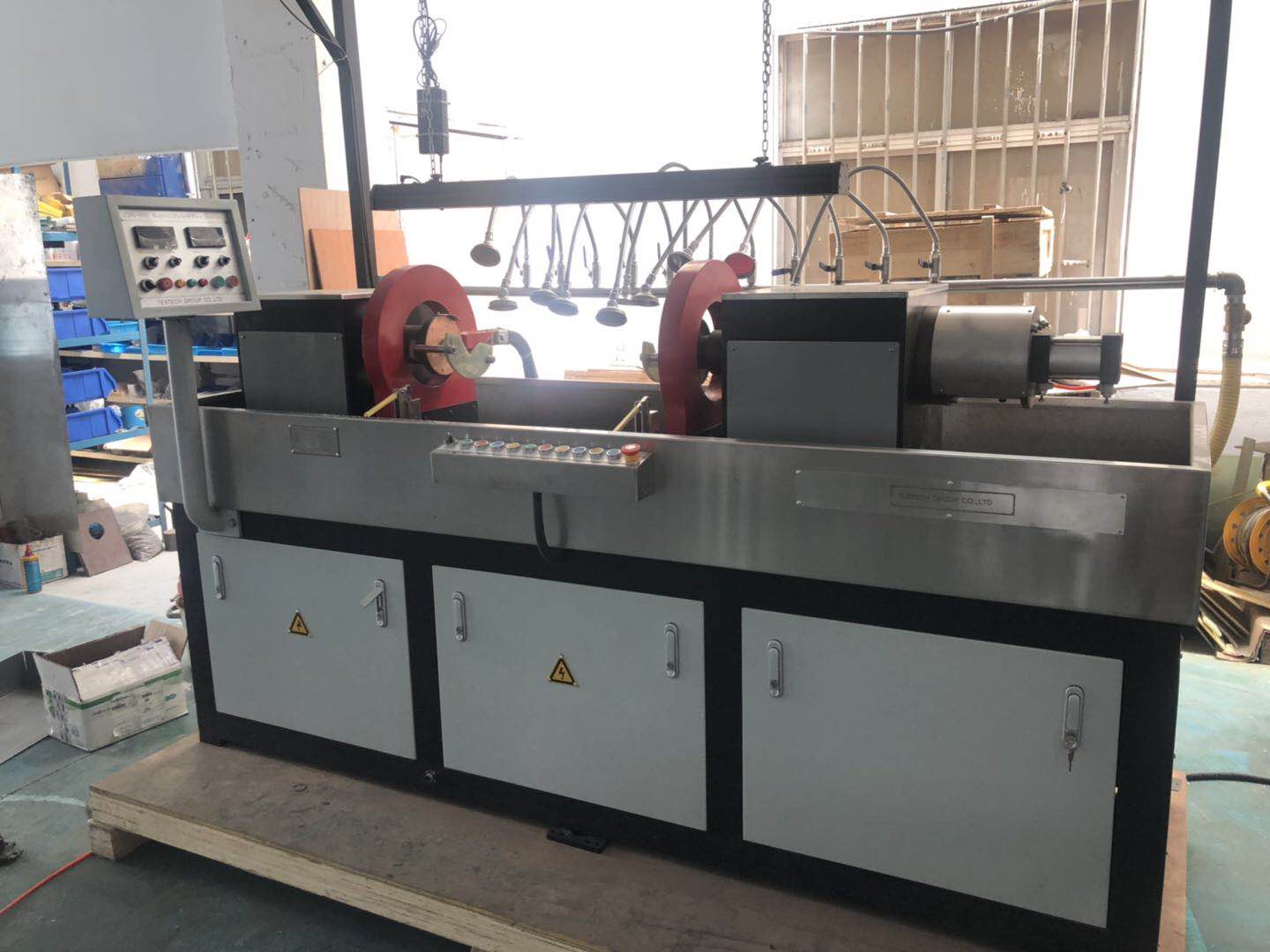

Fluorescent Magnetic Particle Inspection

Features

1, AC magnetization, easy demagnetization, and high surface and near surface    detection sensitivity;

2, With power-off phase control, it is suitable for both continuous detection and residual magnetic detection;

3, Can be single-phase or composite magnetization, automatic attenuation demagnetization;

4, Electric, pneumatic or pedal clamping;

5, The electrode head is driven by a synchronous shaft and rotates synchronously;

6, Thyristor voltage regulation, continuously adjustable current, multiple protections for over-current, over-voltage, and over-temperature;

Application

Various types of shafts and barrels. Such as crankshaft, camshaft, connecting rod, valve, bolt, ball pin, round pin, bearing roller, etc.

Main Technical Parameters:

1. Circumferential magnetization current: AC 0-4000A effective value, continuously adjustable;

2. Longitudinal magnetization magnetic potential：AC 0-18000AT effective value, continuously adjustable;

      3. Magnetization sensitivity: 15/50A 1 type specimen shows clearly;

4. Duty cycle: ≥25%;

5. Electrode spacing: 0-900mm, manually adjustable;

6. Way of working: manual / automatic;

7. Ways of magnetization: circumferential, longitudinal and compound magnetization;

8. Adjustment way of electrode spacing: manual;

9. Way of clamping: pneumatic;

10. Way of demagnetization: decay-type demagnetization;

11. Circumferential demagnetization current: AC 4000-0A, effective value, continuously adjustable;

Longitudinal demagnetization magnetic potential: AC 18000-0AT, effective value, continuously adjustable;

      12. Demagnetization effect: ≤240A/M (0.3mT);

13. UV radiation intensity: ≥1000μW/㎝² of workpiece surface away the light source 380mm;

14. Power supply: three-phase four-wire 380V±10% 50HZ   instantaneous  80A;

15. Outline dimension: 2200 (length) ×800(width) ×1500(height) mm;

    16. Weight: about 1600Kg.
