Three-phase full-wave MPI
Three-phase full-wave MPI Three-phase full-wave MPI

Three-phase full-wave MPI

Product Attributes :

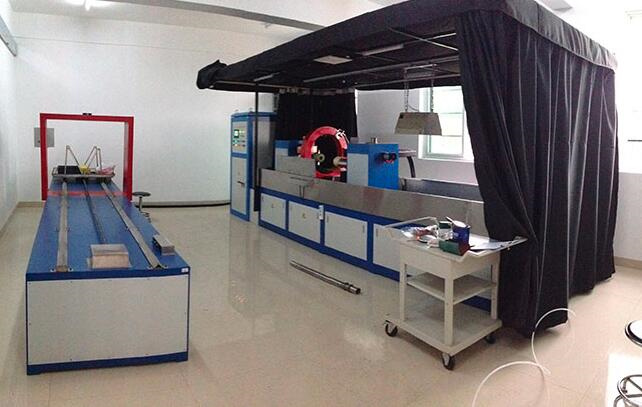

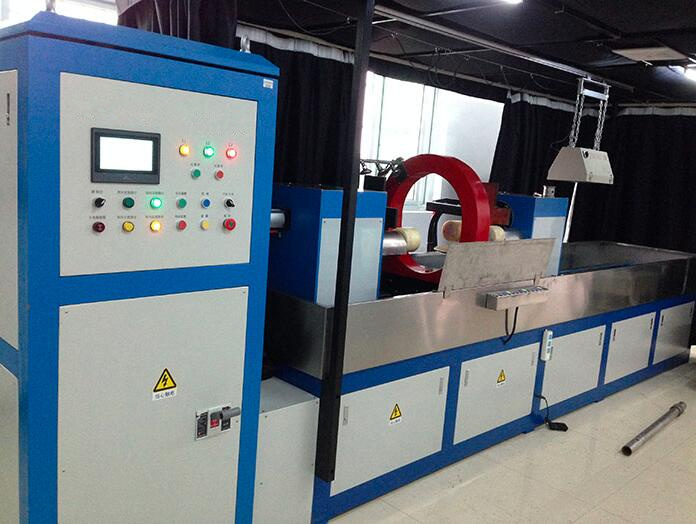

Three-phase full-wave fluorescent magnetic particle flaw detector

Product Description

-Select new materials, adopt new technology, digital control, complete functions;

-It has the characteristics of fast flaw detection speed, high detection sensitivity, strong anti-interference ability, simple operation and convenient use.

-Electromechanical split or combined structure, semi-automatic control of large-scale integrated circuit microcomputer;

-AC and DC dual-use, peripheral longitudinal composite magnetization, electric or pneumatic clamping, roll observation;

-AC magnetization belt power-off phase control, magnetization, gap time control Various functions such as automatic overload protection;

-Each technical performance fully meets the strict requirements of the aerospace and military industries in the United States and Germany.

- Suitable for aviation, aerospace, military and other industries.

Model

CDG-2000E

CDG-4000E

CDG-6000E

CDG-10000E

CDG-15000E

Circumferential magnetization

AC0-2000A

DC0-2000A

AC0-4000A

DC0-4000A

AC0-6000A

DC0-6000A

AC0-10000A

DC0-10000A

AC0-15000A

DC0-15000A

Longitudinal Magnetization

AC0-12000A

DC0-16000A

AC0-16000A

DC0-20000A

AC0-18000A

DC0-24000A

AC0-20000A

DC0-30000A

AC0-20000A

DC0-30000A

Coil diameter

350mm



450mm



450mm



500mm



600mm

Electrode spacing

0-600mm

customizable



0-800mm

customizable



0-1000mm

customizable



0-1500mm

customizable



0-1500mm

customizable



 Power

                         Three phase four wire 380V 50Hz

   200A

  400A

  600A

  1000A

1500A

Dimension

2500×850×2040mm

3000×850×2040mm

4000×850×2040mm

4500×850×2040mm



Weight

1800Kg

2200Kg

2550Kg

3200Kg

4200Kg
