Product Description

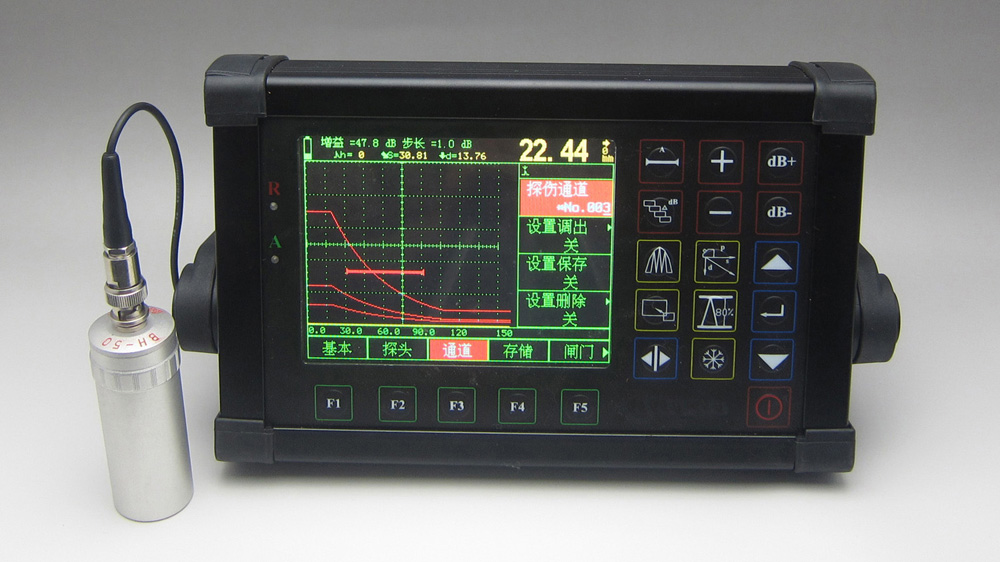

UFD310 Digital Intelligent Ultrasonic Flaw Detector
Fetures
2. High-speed capture and very low noise
3. Solid and artistic metal housing(IP65)
4. Intelligent detection tools, simple to use
5. Powerful pc software and reports can be exported to excel
Functions
1. Five measurement displays. A main display used to enlarge the display, 17 measurement types for your option.
2. Two independent gates setting for independent or joint measurement.
3. Document management system, dynamic data storage, 100 independent detection channels, 300 A graph test reports.
4. The automatic test probe zero, the value of sound velocity and K
5. Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compensated
6. Automated gain and gain scan, automated echo degree
7. Perfect alarm system
8. Li battery, continue working time up to 9 hours
9. Powerful PC software and reports can be export to excel
10. Gate and DAC alarm
Technical Specification:
1. Scan range(mm): 0～6000
2. Pulse Displacement（μs）: -20～+3400
3. Sensor Zero Offset: 0.0～99.99
4. Material Velocity（m/s）: 1000～15000
5. Test mode: single, dual thru
6. Frequency Range（MHz）: （0.5–20）MHz
7. Resolution: ≥40dB
8. Gain range:（0～110）dB
9. Vertical Linearity Error: ≤3%
10. Horizontal Linearity Error: ≤0.2%
11. Sensitivity Leaving: ≥66dB (flat-bottomed deep hole 200mm*2)
12. Dynamic range: ≥32dB
13. Power adapter
Input: 100V～240V/50Hz～60Hz; output: 9V/1.5A
14. Power supply: Li battery 4×3.6V 4800mAh
15. Operating temperature(℃): -10～50
16. Relative humidity(RH): 20%～90%
17. Dimension: 240×150×50（mm）
Configuration
|
Item
|
|
|
|
1
|
Main unit
|
|
|
2
|
Straight probe
|
|
|
3
|
Angle probe
|
|
|
4
|
Power adapter
|
|
|
5
|
Connection cable
|
|
|
6
|
Instruction manual
|
|
|
7
|
Calibration certificate
|
|
|
8
|
Carrying case
|
|
|
9
|
Independent charger
|
optional
|
|
10
|
Test block
|
optional
|
|
11
|
The second Lithium ion battery
|
optional
|
|
12
|
PC communications software
|
optional
|
|
13
|
Data managing cable RS232
|
optional
|
