Product Description
Main Features:

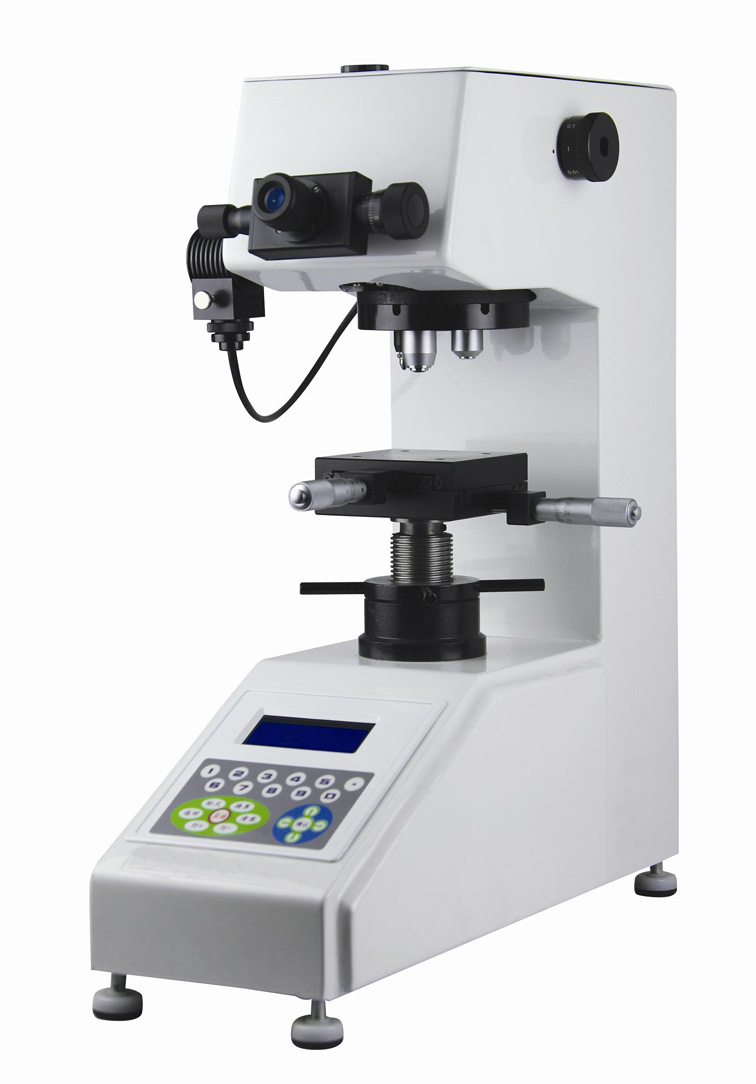

Model THV-1M Automatic turret micro Vickers hardness tester is micro hardness of basic plan, the aircraft used LCD display screen, through the operation panel of hardness or HK each file ruler HV benchmark test time by choice, the lighting source can do promise regulation. Operation can be measured D1 eyepiece, D2 value after the direct input, hardness value in LCD display screen is directly on display.
Model THV-1M automatic turret micro Vickers hardness tester has during the test pressure head and the objective to switch to each other, the test point to be automatic positioning precision.
Model THV-1M Automatic turret micro Vickers hardness tester is micro hardness of basic plan, the aircraft used LCD display screen, through the operation panel of hardness or HK each file ruler HV benchmark test time by choice, the lighting source can do promise regulation. Operation can be measured D1 eyepiece, D2 value after the direct input, hardness value in LCD display screen is directly on display.
Model THV-1M automatic turret micro Vickers hardness tester has during the test pressure head and the objective to switch to each other, the test point to be automatic positioning precision.
Usage Range:
Heat treatment, carbide, quench hardened layer, the surface coating layer, steel, non-ferrous metal and small and thin shape parts, etc.
Technical Specifications:
|
Model
|
Model THV-1M Vickers hardness tester
|
|
Test force
|
10gf (0.098N)、25gf (0.245N)、50gf (0.49N)、100gf (0.98N)、 200gf (1.96N)、300gf (2.94N)、500gf(4.9N)、1kgf (9.8N)
|
|
Min measuring unit
|
0.5µm
|
|
Data output
|
LCD screen display
|
|
Max Height of Specimen
|
80mm
|
|
Distance of Indenter to outer wall
|
95mm
|
|
Net weight
|
About 25Kg
|
|
X-Y Testing table
|
Dimension: 100*100mm Max mobile：25*25mm
|
|
Power supply
|
AC220V+5%，50-60Hz
|
|
Overall Dimension
|
405*290*480mm
|
|
Conversion Scale
|
HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T
|
|
Hardness measuring range
|
8~2900HV
|
|
method of testing force applied
|
|
|
Test microscope magnification
|
400X(Measuring)，100X（observation）
|
|
Duration time
|
0~60s
|
Standard Accessories:
|
Item
|
Quantity
|
Item
|
Quantity
|
|
Weight shaft
|
1
|
Weight
|
6
|
|
Cross clamping testing table
|
1
|
Flat clamping testing table
|
1
|
|
Filament clamping testing table
|
1
|
Thin Specimen Testing Table
|
1
|
|
Screw driver
|
2
|
Level adjustment screw components
|
4
|
|
Level bubble
|
1
|
Objective 10X
|
1
|
|
Micro Vickers hardness block (High, Low)
|
Each 1
|
Fuse(2A)
|
2
|
|
Power cable
|
1
|
Product Certificate
|
|
|
Manual
|
1
|
Note:
Special accessories: special accessories according to user needs rationing custom, the price is another plan.
1. Knoop indenter: can measuring some high hardness materials.
2, Provide 16 X micro-distance measuring eyepiece, total magnification for 640 * and * 40.
3, Provide 6.8 inch LCD screen can be equipped with, have tested indentation in the display on the screen and the measurement.
4. Provide equipped with image acquisition device, will impress clearly shown on a computer screen for automatic or manual measurement.
