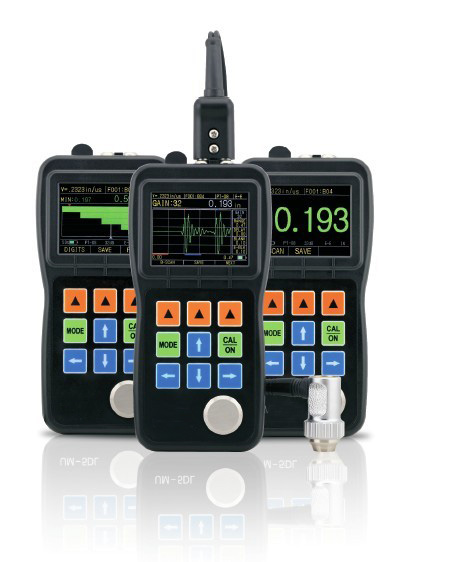

Ultrasonic Thickness Gauge

Color Display

Live A-Scan

Time-based B-Scan

Control of Gain, Blanking, Gate, Range, Delay, RF and Rectify Modes

DataView Software

Instrument Specifications

Display Type

Operating Principle

Pulse echo with dual element transducers

Measuring Range

0.50mm to 508mm(0.02" to 20.00"), depending on material, probe  and surface condition

Selectable 0.01mm, 0.1mm(selectable 0.001", 0.01")

Inch or Millimeter

Rectify Modes

RF+, RF-, HALF+, HALF-, FULL

Display Mode

Normal, Minimum / Maximum capture, DIFF/RR%, A-Scan, B-Scan

V-Path Correction

Update Rate

Selectable 4Hz, 8Hz, 16Hz

Material Velocity Range

500 to 9999m/s (0.0197 to 0.3937in/us)

Alarm Settings

Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010" to 20.00"). Dynamic waveform color change on alarm

Power Requirements

2 AA size batteries

Operating Time

Approximately 40 hours

Instrument Shut-off

Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity

Operating Temperature

-10°C to +50°C (+10°F to +120°F)

153mm X 76mm X 37mm(H X W X D)

280g including batteries

Data Logger Option Features

100,000 readings, 1000 waveforms,400 files

File Structure

Grid file

Rows X Columns

21 X 12

Communication Port

USB 2.0 (Full Speed ) port

DataView PC software

UTG-500 Probe/Transducer Specifications

UM-5
Standard

Cast iron

Contact Diameter

Measurement Range

0.8 to
100.0mm

1.2 to
200.0mm

4.0 to
508.0mm

0.8 to
30.0mm

4.0 to
80.0mm

Temperature Range

-10 to
70℃

-10 to
70℃
